TC620CCOA - Microchip

Description: Board Mount Temperature Sensors Int Sensor C Opt.

Download TC620CCOA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

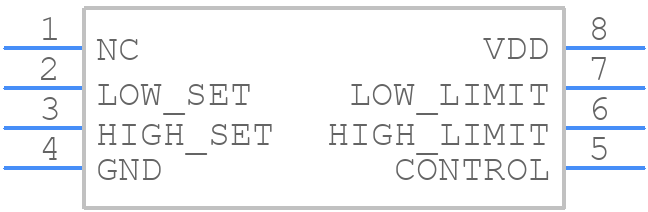

Symbol
TC620CCOA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC620CCOA - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC -2
click to zoom
3D Models
TC620CCOA - Microchip - 3D model - Small Outline Packages - 8-Pin SOIC -2
click to zoom

TC620CCOA Details

  • Manufacturer Part Number:

    TC620CCOA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.27 mA

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TC620CCOA Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC620CCOA is 2.7V to 5.5V, although it can operate down to 2.5V with reduced performance.
  • The TC620CCOA can be configured for 8-bit or 10-bit operation by setting the appropriate bits in the control register. For 8-bit operation, set bit 7 of the control register to 0, and for 10-bit operation, set bit 7 to 1.
  • The maximum clock frequency for the TC620CCOA is 1 MHz, although it can operate at lower frequencies depending on the application requirements.
  • The TC620CCOA outputs data in a 2's complement format. For 8-bit operation, the output data is right-justified, and for 10-bit operation, the output data is left-justified. The user needs to take this into account when processing the output data.
  • The power consumption of the TC620CCOA depends on the operating frequency and voltage. At 5V and 1 MHz, the typical power consumption is around 10 mW. However, this can be reduced to around 1 mW at 2.7V and 100 kHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC620CCOA Overview

Use the download button to access the TC620CCOA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC620, or try a keyword search, such as Temperature Sensors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
