TC620CEPA - Microchip

Description: Microchip TC620CEPA Temperature Sensor 8-Pin PDIP, -40 → 85 °C

Download TC620CEPA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

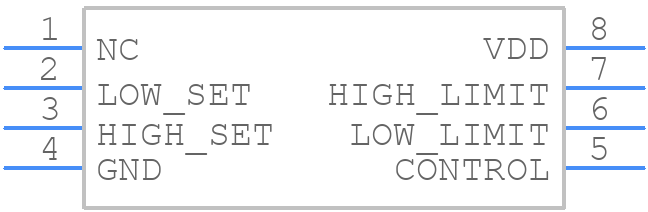

TC620CEPA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC620CEPA - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line (PA) - 300 mil Body [PDIP]
click to zoom
3D Models
TC620CEPA - Microchip - 3D model - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line (PA) - 300 mil Body [PDIP]
click to zoom

TC620CEPA Details

  • Manufacturer Part Number:

    TC620CEPA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    7.62 mm

  • Body Height:

    5.08 mm

  • Body Length or Diameter:

    9.5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.27 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TC620CEPA Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC620CEPA is 2.7V to 5.5V, although it can operate down to 2.5V with reduced performance.
  • The TC620CEPA defaults to 12-bit resolution. To configure it for 10-bit resolution, set the RES pin high during power-up or use the RES pin to dynamically switch between 12-bit and 10-bit resolution.
  • The VREF pin is an internal voltage reference output that can be used as a reference voltage for the ADC. It can be connected to an external capacitor to improve noise rejection and accuracy. Typically, a 10uF capacitor is recommended.
  • To ensure proper operation, power up the VDD pin first, followed by the VREF pin. The VREF pin should be powered up within 100ms of VDD power-up. Additionally, ensure that the CS pin is high during power-up to prevent unwanted conversions.
  • The maximum conversion rate of the TC620CEPA is 188,000 samples per second (SPS). To achieve this rate, use the burst mode, ensure the clock frequency is at least 2.5MHz, and minimize the time between conversions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC620CEPA Overview

Use the download button to access the TC620CEPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC620, or try a keyword search, such as Temperature Sensors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
