- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC652AEVUA
- Part Number TC652AEVUA
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Pin MSOP*
- Released Date Aug 8, 2024
- Last Modified Date Aug 8, 2024 3:45 AM UTC
- Pinout / Pin List Click Here (Member Only)
TC652AEVUA Details
-
Manufacturer Part Number:
TC652AEVUA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
MSOP-8
-
Country Of Origin:
Thailand
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
0
-
Accuracy-Max (Cel):
1 Cel
TC652AEVUA Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TC652AEVUA is 2.7V to 5.5V, with a typical operating voltage of 3.3V or 5V.
-
The TC652AEVUA can be configured for I2C or SMBus operation by setting the appropriate values for the A0, A1, and A2 address pins. Refer to the datasheet for specific pin configurations and address tables.
-
The TC652AEVUA supports a maximum data transfer rate of 400 kHz for I2C operation and 100 kHz for SMBus operation.
-
The TC652AEVUA has a built-in thermal shutdown feature that disables the device when the junction temperature exceeds 150°C. To handle over-temperature protection, use an external thermostat or temperature sensor to monitor the device temperature and take corrective action.
-
Yes, the TC652AEVUA is designed to support hot-swap applications. It has built-in over-voltage protection and can withstand voltage surges during hot-swap events.
Trust Checks
Community Provided
System Verified
Community Approved
TC652AEVUA Overview

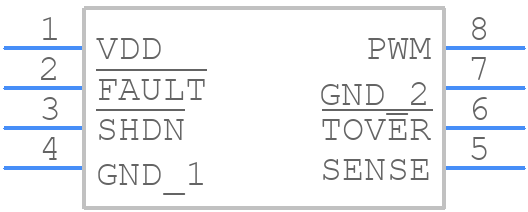

Use the download button to access the TC652AEVUA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC652,
or try a keyword search, such as Temperature Sensors
