TC74AC02P(F) - Toshiba

Description: advanced,CMOSlogDIP14,NOR Gate

Download TC74AC02P(F) Model

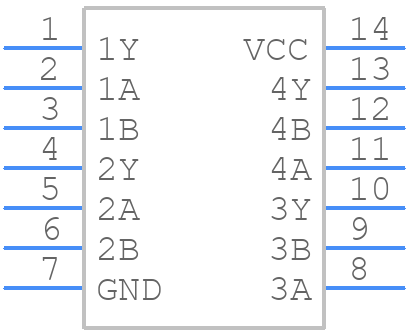

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74AC02P(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TC74AC02P(F)
click to zoom
3D Models
TC74AC02P(F) - Toshiba  - 3D model - Dual-In-Line Packages - TC74AC02P(F)
click to zoom

TC74AC02P(F) Details

  • Manufacturer Part Number:

    TC74AC02P(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.75

  • Family:

    AC

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.012 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    11.2 ns

  • Propagation Delay (tpd):

    11.2 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TC74AC02P(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74AC02P(F) is 4.5V to 5.5V, although it can operate from 3V to 5.5V with reduced performance.
  • When the input pins are not in use, they should be tied to VCC or GND to prevent them from floating, which can cause unpredictable behavior.
  • The maximum frequency of operation for TC74AC02P(F) is typically around 100MHz, but this can vary depending on the specific application and operating conditions.
  • Yes, TC74AC02P(F) can be used in a 3.3V system, but the output voltage levels may not be as high as those in a 5V system, and the noise margin may be reduced.
  • To ensure that the output signals are not distorted, the output pins should be terminated with a load resistance of 1kΩ or higher, and the output voltage levels should be within the recommended range.
