0.150 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOL-14
Pin Count:
14
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
NOT AVAILABLE IN JAPAN
Control Type:
ENABLE LOW
Family:
AC
JESD-30 Code:
R-PDSO-G14
Length:
8.65 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
BUS DRIVER
Max I(ol):
0.024 A
Number of Bits:
1
Number of Functions:
4
Number of Ports:
2
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
3-STATE
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Power Supply Current-Max (ICC):
0.08 mA
Prop. Delay@Nom-Sup:
12 ns
Propagation Delay (tpd):
12 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
3.9 mm
TC74AC125FN Frequently Asked Questions (FAQs)
The recommended operating voltage range for the TC74AC125FN is 4.5V to 5.5V, although it can operate from 3V to 5.5V with reduced performance.
When the input pins are not in use, they should be tied to VCC or GND through a resistor to prevent floating inputs and reduce power consumption.
The maximum frequency of operation for the TC74AC125FN is 100 MHz, although this can vary depending on the specific application and operating conditions.
To ensure that the output signals are not distorted or skewed, it is recommended to use a low-impedance output driver, such as a 50-ohm resistor, and to keep the output traces as short as possible.
Yes, the TC74AC125FN can be used in a 3.3V system, but the output voltage will be reduced to around 3.1V, and the device may not meet the specified propagation delay and rise/fall times.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC74AC125FN Overview

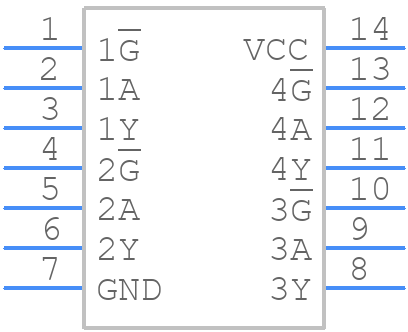

Use the download button to access the TC74AC125FN schematic symbol, PCB footprint, and 3D model.
