TC74AC540F(F) - Toshiba

Description: Toshiba TC74AC540F(F) Octal Buffer & Line Driver, 3-State, Inverting, 2 → 5.5 V, 20-Pin SOP

Download TC74AC540F(F) Model

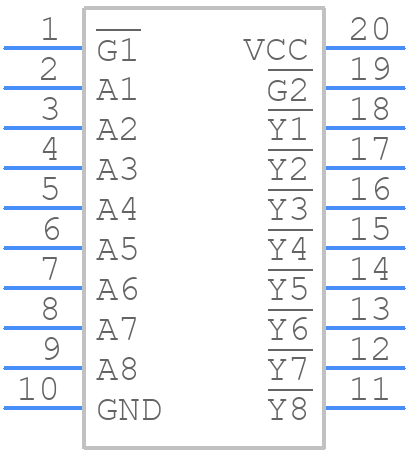

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74AC540F(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A
click to zoom
3D Models
TC74AC540F(F) - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A
click to zoom

TC74AC540F(F) Details

  • Manufacturer Part Number:

    TC74AC540F(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Additional Feature:

    WITH DUAL OUTPUT ENABLE

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AC

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Propagation Delay (tpd):

    12 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74AC540F(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74AC540F(F) is 4.5V to 5.5V.
  • When the input pins are not in use, they should be tied to VCC or GND to prevent them from floating and causing unwanted switching.
  • The maximum frequency of operation for the TC74AC540F(F) is 100 MHz.
  • To ensure that the output signals are not distorted, the output pins should be terminated with a 50Ω resistor to VCC or GND, and the output signal should be kept within the specified voltage range.
  • No, the TC74AC540F(F) is not recommended for use in a 3.3V system, as it is specified for 5V operation. Using it in a 3.3V system may result in reduced performance or malfunction.
