TC74ACT541P(F) - Toshiba

Description: Toshiba TC74ACT541P(F) Octal-Channel Buffer & Line Driver, 3-State, 20-Pin PDIP

Download TC74ACT541P(F) Model

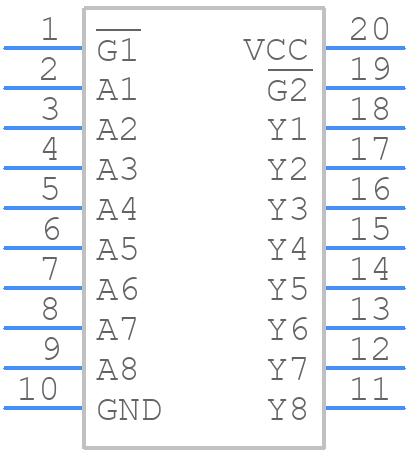

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

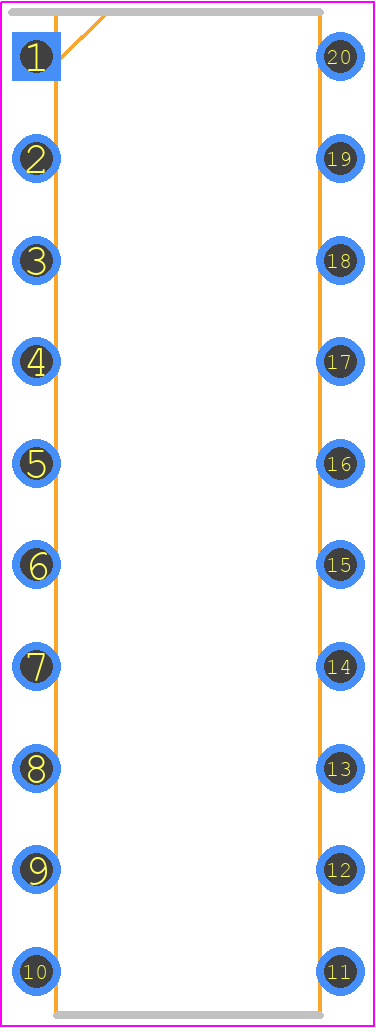

TC74ACT541P(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20-P-300-2.54A-3
click to zoom
3D Models
TC74ACT541P(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP20-P-300-2.54A-3
click to zoom

TC74ACT541P(F) Details

  • Manufacturer Part Number:

    TC74ACT541P(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.9

  • Additional Feature:

    WITH DUAL OUTPUT ENABLE

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ACT

  • JESD-30 Code:

    R-PDIP-T20

  • Length:

    24.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    200 mA

  • Prop. Delay@Nom-Sup:

    9.5 ns

  • Propagation Delay (tpd):

    9.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC74ACT541P(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74ACT541P(F) is 4.5V to 5.5V, although it can operate from 2.0V to 6.0V.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the TC74ACT541P(F) is 100 MHz, although this can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, it is recommended to use a low-impedance output driver, minimize trace lengths, and use proper termination and shielding techniques to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The thermal resistance of the TC74ACT541P(F) package is typically around 60°C/W for the PDIP package and 40°C/W for the SOP package, although this can vary depending on the specific application and operating conditions.
