TC74HC107AF(F) - Toshiba

Description: Toshiba TC74HC107AF(F) Dual JK Type Flip Flop IC, 14-Pin SOP

Download TC74HC107AF(F) Model

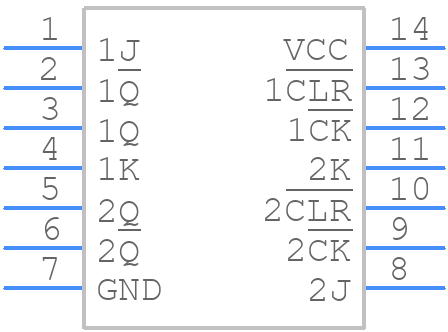

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC107AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27A
click to zoom
3D Models
TC74HC107AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300-1.27A
click to zoom

TC74HC107AF(F) Details

  • Manufacturer Part Number:

    TC74HC107AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    J-K FLIP-FLOP

  • Max Frequency@Nom-Sup:

    25000000 Hz

  • Max I(ol):

    0.004 A

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Propagation Delay (tpd):

    155 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    30 MHz

TC74HC107AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC107AF(F) is 2V to 6V, although it can operate from 1.5V to 7V with reduced performance.
  • It is recommended to power up the VCC pin first, followed by the input signals, and power down the input signals first, followed by the VCC pin to prevent latch-up and ensure proper operation.
  • The maximum frequency of operation for the TC74HC107AF(F) is 10MHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
  • To ensure noise immunity and signal integrity, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors to the power supply lines.
  • Yes, the TC74HC107AF(F) can be used in a 5V system, but it is recommended to use a voltage regulator or voltage divider to ensure the input voltage is within the recommended operating range.
