TC74HC125AF(F) - Toshiba

Description: Toshiba TC74HC125AF(F)Quad-ChannelBuffer & Line Driver, 3-State, 14-Pin SOP

Download TC74HC125AF(F) Model

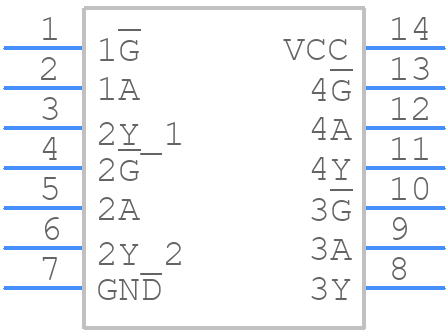

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC125AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27A_11
click to zoom
3D Models
TC74HC125AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300-1.27A_11
click to zoom

TC74HC125AF(F) Details

  • Manufacturer Part Number:

    TC74HC125AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC125AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC125AF(F) is 2.0 V to 5.5 V.
  • Yes, the TC74HC125AF(F) is compatible with both 3.3 V and 5 V logic systems, making it a versatile component for various applications.
  • The maximum clock frequency that the TC74HC125AF(F) can handle is 50 MHz.
  • No, the TC74HC125AF(F) does not have built-in pull-up resistors. External pull-up resistors may be required depending on the application.
