TC74HC126AF(F) - Toshiba

Description: IC, 74 series logic

Download TC74HC126AF(F) Model
Schematic
symbols

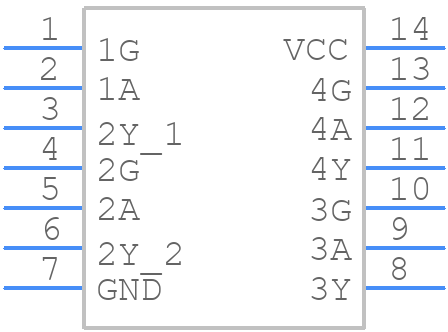

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC126AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300
click to zoom
3D Models
TC74HC126AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300
click to zoom

TC74HC126AF(F) Details

  • Manufacturer Part Number:

    TC74HC126AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC126AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74HC126AF(F) is 2V to 6V, with a typical voltage of 5V.
  • When the input pins are not in use, they should be tied to VCC or GND to prevent them from floating, which can cause unpredictable behavior.
  • The maximum frequency of operation for TC74HC126AF(F) is 10MHz, but this can vary depending on the operating voltage and load conditions.
  • Yes, TC74HC126AF(F) can be used in a 3.3V system, but the output voltage will be limited to around 3.1V, and the device may not be able to drive heavy loads.
  • To ensure that the output signals are not distorted, the output pins should be terminated with a load impedance of 50 ohms or higher, and the output voltage should not exceed the recommended maximum value.
