The recommended operating voltage range for the TC74HC161AP is 2.0V to 5.5V.
The asynchronous clear (CLR) input should be tied to VCC through a pull-up resistor to prevent accidental clearing of the counter. A 1kΩ to 10kΩ resistor is recommended.
The maximum clock frequency for the TC74HC161AP is 30 MHz at VCC = 5V and 15 MHz at VCC = 3.3V.
To ensure proper synchronization of the clock signal, the clock signal should be synchronized with the system clock, and the clock signal should have a rise and fall time of less than 10 ns.
The carry-out (CO) output is used to cascade multiple counters together. When the counter overflows, the CO output goes high, indicating that the counter has overflowed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC74HC161AP Overview

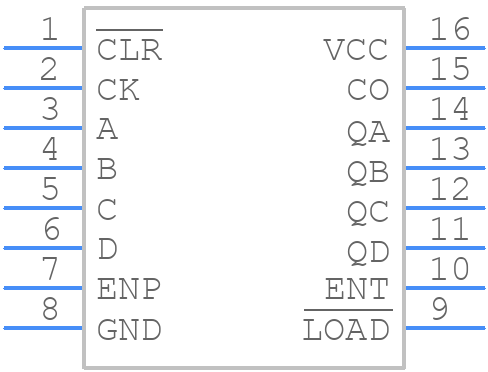

Use the download button to access the TC74HC161AP schematic symbol, PCB footprint, and 3D model.
