The maximum clock frequency for the TC74HC165AF is 10 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the datasheet for specific frequency limits under different operating conditions.
To ensure reliable data transfer, make sure to meet the setup and hold time requirements for the data inputs, use a stable clock signal, and avoid clock skew between the clock and data signals. Additionally, use a suitable pull-up resistor value for the output pins to ensure proper signal levels.
Yes, the TC74HC165AF is compatible with 5V systems, but it's essential to ensure that the input voltage (VCC) is within the recommended range of 4.5V to 5.5V. Additionally, be aware of the maximum output current and voltage limits to avoid damaging the device or other components in the system.
The output enable (OE) pin is active-low, meaning that the outputs are enabled when OE is low (typically connected to GND) and disabled when OE is high (typically connected to VCC). Make sure to connect the OE pin correctly to ensure proper output behavior.
The power consumption of the TC74HC165AF depends on the operating frequency, voltage, and temperature. According to the datasheet, the typical quiescent current (ICC) is around 20 μA at 5V and 10 MHz. However, it's recommended to check the datasheet for specific power consumption values under different operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC74HC165AF(EL,F) Overview

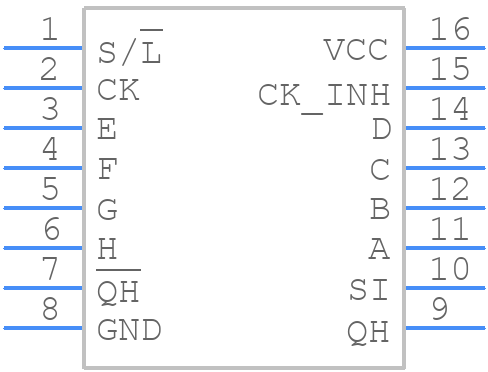

Use the download button to access the TC74HC165AF(EL,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H,
or try a keyword search, such as Shift Registers
