The maximum clock frequency for the TC74HC165AF(F) is 10 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the datasheet for specific frequency limits under different operating conditions.
To ensure correct data transfer in a multi-master bus system, it's essential to use a proper bus arbitration mechanism, such as a bus arbiter or a priority encoder, to prevent data corruption and ensure that only one master device is transmitting data at a time.
The OE (Output Enable) pin is used to enable or disable the output buffers of the TC74HC165AF(F). When OE is low, the output buffers are enabled, and the data is driven onto the bus. When OE is high, the output buffers are disabled, and the outputs are in a high-impedance state.
While the TC74HC165AF(F) can operate with a wide range of supply voltages (2.0 V to 5.5 V), it's not designed to be used as a level shifter. If you need to interface with devices operating at different voltage levels, it's recommended to use a dedicated level shifter or voltage translator IC.
It's essential to follow a proper power-up and power-down sequence to prevent damage to the device or other components in the system. The recommended sequence is to power up the VCC supply first, followed by the input signals, and then the clock signal. During power-down, the clock signal should be stopped before the input signals, and finally, the VCC supply should be turned off.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC74HC165AF(F) Overview

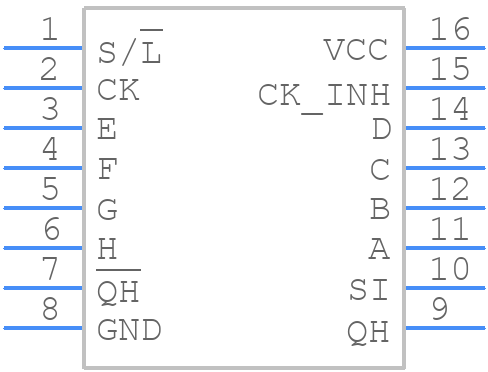

Use the download button to access the TC74HC165AF(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H,
or try a keyword search, such as Shift Registers
