TC74HC240AF(F) - Toshiba

Description: Toshiba TC74HC240AF(F)Octal-ChannelBuffer & Line Driver, 3-State, Inverting, 20-Pin SOP

Download TC74HC240AF(F) Model

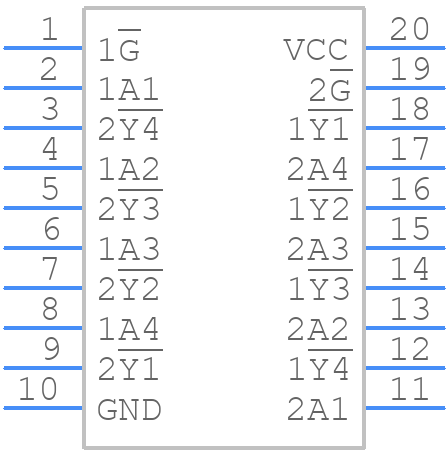

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC240AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A
click to zoom
3D Models
TC74HC240AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A
click to zoom

TC74HC240AF(F) Details

  • Manufacturer Part Number:

    TC74HC240AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC240AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC240AF(F) is 2V to 6V, with a typical voltage of 5V.
  • When the input pins are not in use, they should be tied to a valid logic level (either VCC or GND) to prevent them from floating and causing unintended behavior.
  • The maximum frequency of operation for the TC74HC240AF(F) is 10MHz at 5V and 25°C.
  • To prevent damage due to overvoltage, the output pins should not be driven above VCC + 0.5V or below GND - 0.5V. Additionally, the output pins should not be short-circuited to each other or to VCC or GND.
  • The power dissipation of the TC74HC240AF(F) is typically 20mW at 5V and 25°C, but can vary depending on the operating conditions and load.
