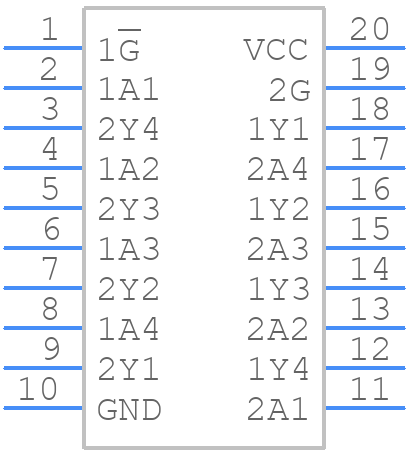

TC74HC241AF(F) - Toshiba

TC74HC241AF(F) Details

• Manufacturer Part Number:

  TC74HC241AF(F)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  5

• Control Type:

  ENABLE LOW/HIGH

• Count Direction:

  UNIDIRECTIONAL

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.0078 A

• Number of Bits:

  4

• Number of Functions:

  2

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Power Supply Current-Max (ICC):

  75 mA

• Prop. Delay@Nom-Sup:

  23 ns

• Propagation Delay (tpd):

  165 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.9 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
