TC74HC373AP(F) - Toshiba

Description: Toshiba TC74HC373AP(F) 8bit-Bit Latch, Transparent D Type, 3 State, 20-Pin PDIP

Download TC74HC373AP(F) Model

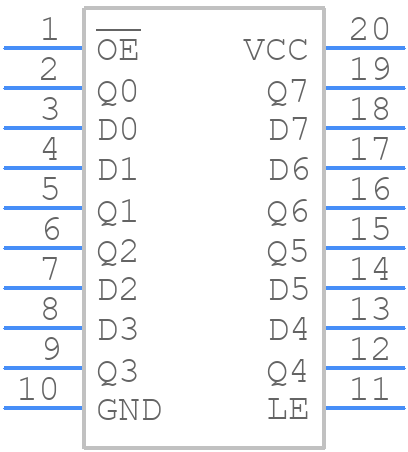

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

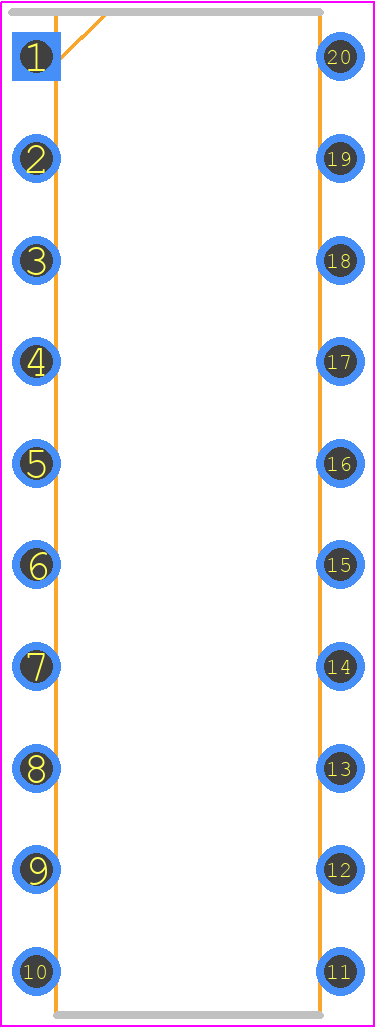

TC74HC373AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20_
click to zoom
3D Models
TC74HC373AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP20_
click to zoom

TC74HC373AP(F) Details

  • Manufacturer Part Number:

    TC74HC373AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T20

  • Length:

    24.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    31 ns

  • Propagation Delay (tpd):

    220 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TC74HC373AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74HC373AP(F) is 4.5V to 5.5V, although it can operate from 3V to 5.5V with reduced performance.
  • It is recommended to keep the latch enable (LE) pin low during power-up to prevent unwanted data from being latched. Once the power supply is stable, LE can be driven high to enable latching.
  • The maximum frequency of the clock (CLK) input is 10MHz, although this can vary depending on the operating voltage and load conditions.
  • Yes, the TC74HC373AP(F) can be used as a level shifter, but it is not recommended as it is not designed for this purpose. The device is intended for latching and buffering applications.
  • To ensure data integrity during power-down, it is recommended to keep the latch enable (LE) pin low and the clock (CLK) pin low or high-impedance to prevent unwanted data from being latched.
