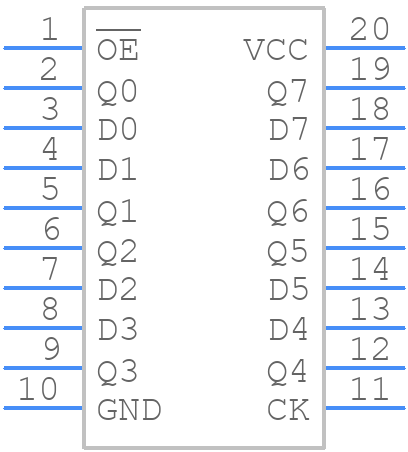

TC74HC374AF - Toshiba

TC74HC374AF Details

• Manufacturer Part Number:

  TC74HC374AF

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  0.300 INCH, 1.27 MM PITCH, PLASTIC, SOP-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e0

• Length:

  12.8 mm

• Load Capacitance (CL):

  150 pF

• Logic IC Type:

  BUS DRIVER

• Max Frequency@Nom-Sup:

  25000000 Hz

• Max I(ol):

  0.006 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Power Supply Current-Max (ICC):

  75 mA

• Prop. Delay@Nom-Sup:

  240 ns

• Propagation Delay (tpd):

  240 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.8 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  4.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  5.3 mm
