TC74HC4040AF(F) - Toshiba

Description: Toshiba TC74HC4040AF(F) 12-stage Surface Mount Binary Counter HC, 16-Pin SOP

Download TC74HC4040AF(F) Model

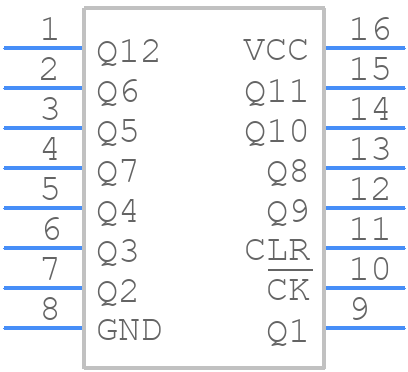

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC4040AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC74HC4040AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC74HC4040AF(F) Details

  • Manufacturer Part Number:

    TC74HC4040AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Count Direction:

    UP

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    24000000 Hz

  • Max I(ol):

    0.004 A

  • Mode of Operation:

    SYNCHRONOUS

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    36 ns

  • Propagation Delay (tpd):

    180 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    28 MHz

TC74HC4040AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC4040AF(F) is 2V to 6V, with a typical voltage of 5V.
  • It is recommended to power up the VCC pin before applying any input signals to ensure proper operation. Also, ensure that the input signals are stable before applying the clock signal.
  • The maximum clock frequency that the TC74HC4040AF(F) can handle is 10MHz at 5V and 6MHz at 3.3V.
  • The counter can be reset by applying a low signal to the MR (Master Reset) pin. The MR pin must be held low for at least 10ns to ensure a proper reset.
