TC74HC4050AP(F) - Toshiba

Description: IC, 74 high speed CMOS logic, TC74HC4050 Toshiba TC74HC4050AP(F) Hex Buffer & Line Driver, 2 → 6 V, 16-Pin PDIP

Download TC74HC4050AP(F) Model

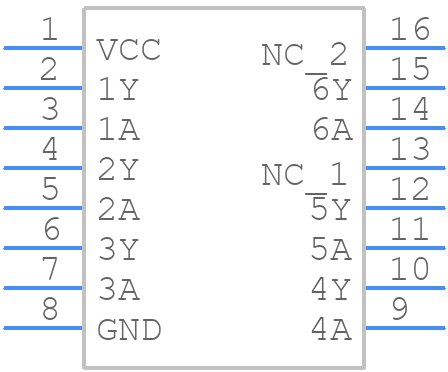

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC4050AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16
click to zoom
3D Models
TC74HC4050AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP16
click to zoom

TC74HC4050AP(F) Details

  • Manufacturer Part Number:

    TC74HC4050AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Family:

    HC

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.0078 A

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    29 ns

  • Propagation Delay (tpd):

    145 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC74HC4050AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC4050AP(F) is 2V to 6V.
  • To ensure proper power supply, connect VCC to a stable voltage source, and GND to a reliable ground. Decouple the power supply with a 0.1uF capacitor to reduce noise.
  • The maximum clock frequency supported by the TC74HC4050AP(F) is 10MHz.
  • The output enable (OE) pin is active-low. Connect it to GND to enable the outputs, and to VCC to disable them.
  • The propagation delay of the TC74HC4050AP(F) is typically 15ns at 5V and 25°C.
