TC74HC4051AF(F) - Toshiba

Description: IC, 74 series logic Toshiba TC74HC4051AF(F), Analogue Switch Single 8:1, 3 V, 5 V, 16-Pin SOP

Download TC74HC4051AF(F) Model
Schematic

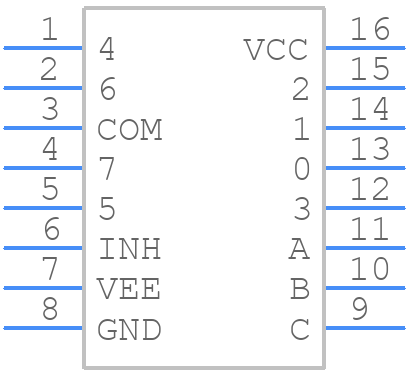

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC4051AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC74HC4051AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC74HC4051AF(F) Details

  • Manufacturer Part Number:

    TC74HC4051AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.55

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    5 Ω

  • On-state Resistance-Max (Ron):

    120 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    315 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC4051AF(F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC74HC4051AF(F) is 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper power sequencing, the VCC pin should be powered up before the input signals, and the input signals should be stable before the output is enabled. A power-on reset circuit can also be used to ensure proper power sequencing.
  • The maximum current that can be sourced or sunk by the TC74HC4051AF(F) is 25 mA per channel, but it's recommended to limit the current to 10 mA per channel to ensure reliable operation.
  • The enable pin (EN) should be tied to VCC or a logic high signal to enable the device. When EN is low, the device is in a high-impedance state, and the outputs are disconnected from the bus.
  • The propagation delay of the TC74HC4051AF(F) is typically around 10-20 ns, but it can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74HC4051AF(F) Overview

Use the download button to access the TC74HC4051AF(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H, or try a keyword search, such as Multiplexers or Switches
