TC74HC4052AF(F) - Toshiba

Description: TC74HC4052AF(F) Toshiba, Multiplexer/Demultiplexer Dual 4:1, 3 V, 5 V, 16-Pin SOP

Download TC74HC4052AF(F) Model

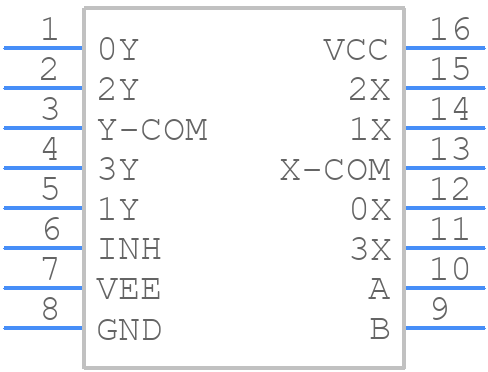

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC4052AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A-a
click to zoom
3D Models
TC74HC4052AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A-a
click to zoom

TC74HC4052AF(F) Details

  • Manufacturer Part Number:

    TC74HC4052AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.58

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    5 Ω

  • On-state Resistance-Max (Ron):

    120 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    315 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC4052AF(F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC74HC4052AF(F) is 10 MHz, but it can be affected by factors such as supply voltage, temperature, and load capacitance.
  • To ensure correct power sequencing, the VCC pin should be powered up before the input signals, and the input signals should be stable before the VCC pin reaches its operating voltage.
  • The recommended operating voltage range for the TC74HC4052AF(F) is 2.0 V to 6.0 V, but it can operate down to 1.8 V with reduced performance.
  • Unused inputs on the TC74HC4052AF(F) should be tied to a fixed logic level (either VCC or GND) to prevent floating inputs and reduce power consumption.
  • The TC74HC4052AF(F) is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. Consult the datasheet and application notes for more information.
