The maximum operating frequency of the TC74HC4053AF(F) is 10 MHz, but it can be affected by the load capacitance and the output current. It's recommended to check the switching time and the output waveform to ensure the desired frequency operation.
To ensure correct power sequencing, the VCC pin should be powered up before the input signals, and the input signals should be stable before the VCC pin is powered up. Additionally, the VCC pin should be powered down before the input signals are changed.
The recommended operating voltage range for the TC74HC4053AF(F) is 4.5V to 5.5V, but it can operate from 3V to 5.5V. However, the device's performance and functionality may be affected at lower voltage ranges.
The TC74HC4053AF(F) has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid high-power dissipation. The device's power dissipation can be calculated using the formula: Pd = (VCC x ICC) + Σ(Vo x Io).
The TC74HC4053AF(F) has built-in ESD protection diodes on the input and output pins, which can withstand electrostatic discharges up to 2kV according to the Human Body Model (HBM) and 200V according to the Machine Model (MM). However, it's still recommended to follow proper ESD handling procedures when handling the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC74HC4053AF(F) Overview

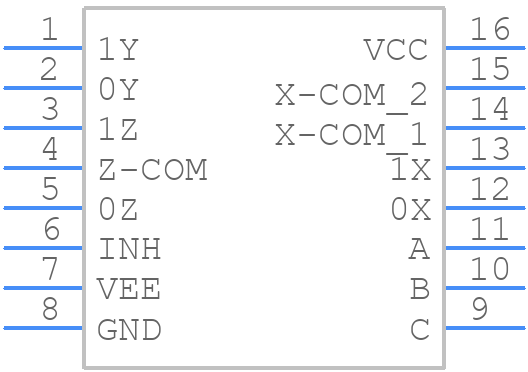

Use the download button to access the TC74HC4053AF(F) schematic symbol, PCB footprint, and 3D model.
