TC74HC4053AP(F) - Toshiba

Description: TC74HC4053AP(F) Toshiba, Multiplexer/Demultiplexer Triple 2:1, 3 V, 5 V, 16-Pin PDIP

Download TC74HC4053AP(F) Model

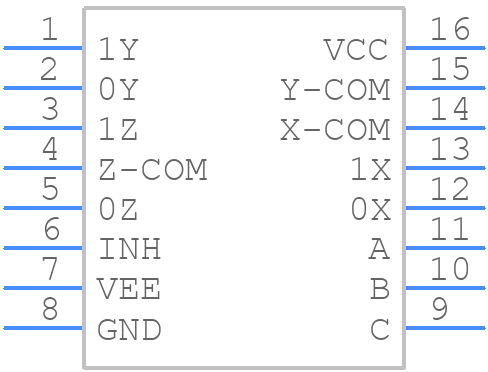

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC4053AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TC74HC4053AP(F)
click to zoom
3D Models
TC74HC4053AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - TC74HC4053AP(F)
click to zoom

TC74HC4053AP(F) Details

  • Manufacturer Part Number:

    TC74HC4053AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    5 Ω

  • On-state Resistance-Max (Ron):

    120 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    280 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    6.4 mm

TC74HC4053AP(F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC74HC4053AP(F) is 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper power sequencing, the VCC pin should be powered up before the input signals, and the input signals should be stable before the output enable (OE) pin is asserted low.
  • The maximum current that can be sourced or sunk by the TC74HC4053AP(F) is 25 mA per channel, but it's recommended to limit the current to 10 mA per channel to ensure reliable operation.
  • Yes, the TC74HC4053AP(F) can be used as a level shifter, but it's not recommended as it's not designed for level shifting applications. Instead, use a dedicated level shifter IC for reliable operation.
  • To handle ESD protection, ensure that the TC74HC4053AP(F) is handled and stored in an ESD-protected environment, and use ESD protection devices such as TVS diodes or ESD protection arrays in the circuit design.
