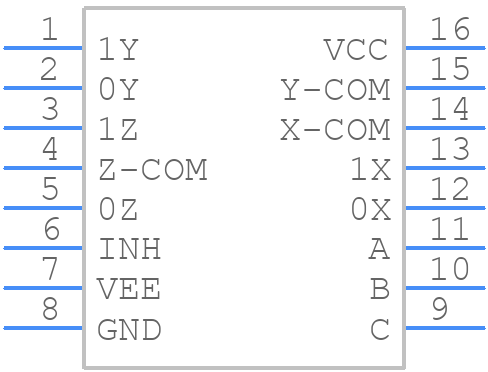

TC74HC4053AP - Toshiba

TC74HC4053AP Details

• Manufacturer Part Number:

  TC74HC4053AP

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Additional Feature:

  IT CAN ALSO OPERATE WITH 2 TO 12 V SUPPLY

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDIP-T16

• Length:

  19.25 mm

• Neg Supply Voltage-Max (Vsup):

  -6 V

• Neg Supply Voltage-Nom (Vsup):

  -4.5 V

• Normal Position:

  NO

• Number of Channels:

  6

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  50 dB

• On-state Resistance Match-Nom:

  5 Ω

• On-state Resistance-Max (Ron):

  55 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.45 mm

• Signal Current-Max:

  0.025 A

• Supply Current-Max (Isup):

  0.08 mA

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  4.5 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  45 ns

• Switch-on Time-Max:

  45 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.62 mm
