Part Image

TC74HC4060AF(F) - Toshiba

Description: IC, 74 series logic

Download TC74HC4060AF(F) Model

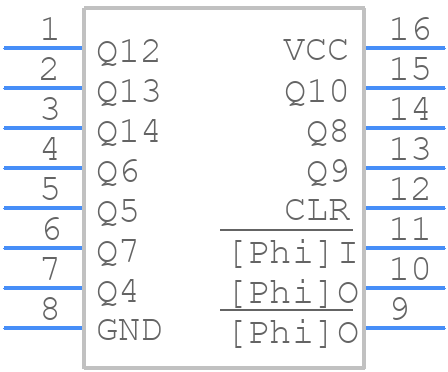

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC4060AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC74HC4060AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC74HC4060AF(F) Details

  • Manufacturer Part Number:

    TC74HC4060AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.35

  • Count Direction:

    UP

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    YES

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    24000000 Hz

  • Max I(ol):

    0.0052 A

  • Mode of Operation:

    ASYNCHRONOUS

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    75 ns

  • Propagation Delay (tpd):

    375 ns

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    35 MHz

TC74HC4060AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC4060AF(F) is 2.0V to 5.5V.
  • It is recommended to power up the VCC pin before applying any input signals to ensure proper operation. Also, ensure that the input signals are stable before enabling the clock signal.
  • The maximum clock frequency that the TC74HC4060AF(F) can handle is 20MHz at VCC = 5V and 10MHz at VCC = 3V.
  • The counter can be reset by applying a low signal to the MR (Master Reset) pin. The MR pin must be held low for at least 2 clock cycles to ensure a proper reset.
  • The propagation delay time for the TC74HC4060AF(F) is typically around 20ns at VCC = 5V and 30ns at VCC = 3V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74HC4060AF(F) Overview

Use the download button to access the TC74HC4060AF(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H, or try a keyword search, such as Counters
