TC74HC4066AP(F) footprint, schematic symbol and 3D model by Toshiba

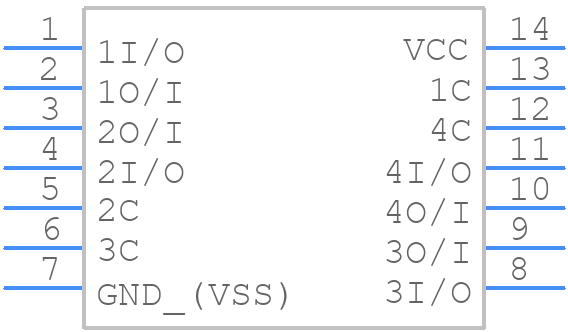

Symbol

click to zoom

PCB Footprints

TC74HC4066AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54

click to zoom

3D Models

TC74HC4066AP(F) - Toshiba - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC74HC4066AP(F)
Part Number TC74HC4066AP(F)
Manufacturer Toshiba
Pin Count 14
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP14-P-300-2.54
Released Date Feb 11, 2018
Last Modified Date Apr 4, 2025 2:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TC74HC4066AP(F) Details

Manufacturer Part Number:
TC74HC4066AP(F)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP-14
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
6.65
Analog IC - Other Type:
SPST
JESD-30 Code:
R-PDIP-T14
Length:
19.25 mm
Normal Position:
NO
Number of Channels:
4
Number of Functions:
4
Number of Terminals:
14
Off-state Isolation-Nom:
60 dB
On-state Resistance Match-Nom:
10 Ω
On-state Resistance-Max (Ron):
100 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
4.45 mm
Supply Voltage-Max (Vsup):
12 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
4.5 V
Surface Mount:
NO
Switch-off Time-Max:
145 ns
Switch-on Time-Max:
125 ns
Switching:
MAKE-BEFORE-BREAK
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

TC74HC4066AP(F) Frequently Asked Questions (FAQs)

The maximum operating frequency of the TC74HC4066AP(F) is 10 MHz, but it can vary depending on the specific application and operating conditions.
To ensure proper power sequencing, it is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This helps to prevent latch-up and damage to the device.
The maximum current that can be sunk or sourced by the TC74HC4066AP(F) is ±25 mA per channel, but it is recommended to limit the current to ±10 mA per channel to ensure reliable operation.
To handle ESD protection, it is recommended to use ESD protection devices such as TVS diodes or ESD protection arrays in conjunction with the TC74HC4066AP(F). Additionally, follow proper PCB design and layout guidelines to minimize ESD risks.
The recommended operating temperature range for the TC74HC4066AP(F) is -40°C to +85°C, but it can vary depending on the specific application and operating conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

TC74HC4066AP(F) Overview

Use the download button to access the TC74HC4066AP(F) schematic symbol, PCB footprint, and 3D model.
