TC74HC4078AP - Toshiba

Description: Logic Circuit, 8-Input OR/NOR, HC-CMOS, 14 Pin, Plastic, DIP

Download TC74HC4078AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

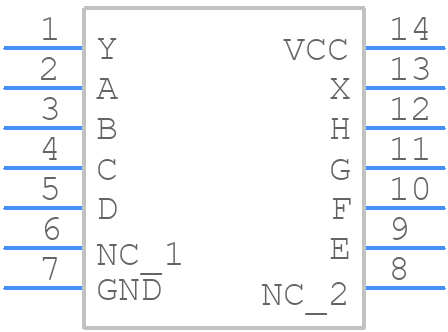

Symbol
TC74HC4078AP - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC74HC4078AP - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-14
click to zoom
3D Models
TC74HC4078AP - Toshiba - 3D model - Dual-In-Line Packages - PDIP-14
click to zoom

TC74HC4078AP Details

  • Manufacturer Part Number:

    TC74HC4078AP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR/NOR GATE

  • Max I(ol):

    0.004 A

  • Number of Functions:

    1

  • Number of Inputs:

    8

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    33 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC74HC4078AP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC4078AP is 2V to 6V, with a typical voltage of 5V.
  • The TC74HC4078AP is a CMOS device, and as such, it is sensitive to input signal polarity. Ensure that the input signals are within the specified voltage range and that the input voltage does not exceed the supply voltage (VCC).
  • The maximum frequency of operation for the TC74HC4078AP is typically around 10MHz, but this can vary depending on the specific application and operating conditions.
  • To ensure proper operation, it is recommended to power up the TC74HC4078AP with a slow rise time (typically 10ms or more) and to power down with a slow fall time (typically 10ms or more). This helps to prevent voltage spikes and ensures that the device is properly initialized.
  • To minimize noise and ensure proper operation, it is recommended to follow good layout and routing practices, such as keeping signal traces short and away from power and ground planes, using decoupling capacitors, and avoiding sharp corners and bends in the PCB layout.
