TC74HC4538AF(F) - Toshiba

Description: Toshiba TC74HC4538AF(F), Dual Monostable Multivibrator 5.2mA, 16-Pin SOP

Download TC74HC4538AF(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

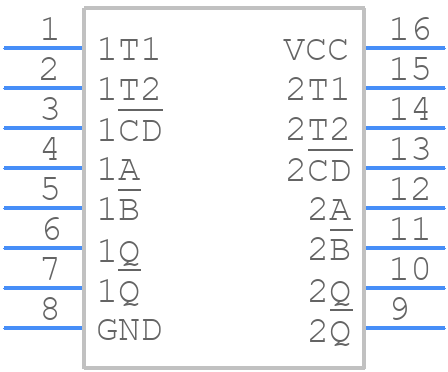

TC74HC4538AF(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC74HC4538AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC74HC4538AF(F) - Toshiba - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC74HC4538AF(F) Details

  • Manufacturer Part Number:

    TC74HC4538AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.5

  • JESD-30 Code:

    R-PDSO-G16

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Propagation Delay (tpd):

    315 ns

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

TC74HC4538AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC4538AF(F) is 2.0 V to 5.5 V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, and to consider the device's thermal characteristics, such as its junction-to-ambient thermal resistance (RθJA) and maximum junction temperature (Tj).
  • The maximum frequency of operation for the TC74HC4538AF(F) is 30 MHz at VCC = 5.0 V and 20 MHz at VCC = 3.0 V.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent unwanted device behavior. A slow and monotonic power-up and power-down sequence is recommended, with a minimum rise and fall time of 10 ms.
  • The TC74HC4538AF(F) has built-in ESD protection and latch-up prevention measures, including input clamping diodes and a latch-up protection circuit. However, it is still recommended to follow proper ESD handling and PCB design guidelines to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74HC4538AF(F) Overview

Use the download button to access the TC74HC4538AF(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H, or try a keyword search, such as Prescaler/Multivibrators
