TC74HC4538AP(F) - Toshiba

Description: IC, 74 high speed CMOS logic, TC74HC4538 Toshiba TC74HC4538AP(F) Dual Monostable Multivibrator 5.2mA, 2 → 6 V, 16-Pin PDIP

Download TC74HC4538AP(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

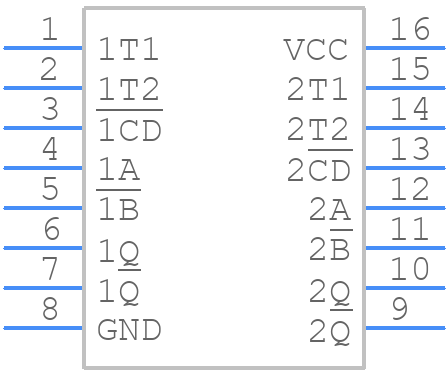

TC74HC4538AP(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC74HC4538AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16-P-300-2.54A
click to zoom
3D Models
TC74HC4538AP(F) - Toshiba - 3D model - Dual-In-Line Packages - DIP16-P-300-2.54A
click to zoom

TC74HC4538AP(F) Details

  • Manufacturer Part Number:

    TC74HC4538AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • JESD-30 Code:

    R-PDIP-T16

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Propagation Delay (tpd):

    315 ns

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

TC74HC4538AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC4538AP(F) is 2.0 V to 5.5 V.
  • To ensure correct polarity, connect the input signals to the device such that the anode (positive leg) of the input diode is connected to the input pin and the cathode (negative leg) is connected to GND or a voltage lower than the input pin.
  • The maximum frequency of operation for the TC74HC4538AP(F) is 10 MHz.
  • To ensure proper operation, power-up and power-down sequences should be controlled to prevent voltage differences between VCC and GND, and to prevent input signals from exceeding the maximum rating.
  • The recommended storage temperature range for the TC74HC4538AP(F) is -40°C to 125°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74HC4538AP(F) Overview

Use the download button to access the TC74HC4538AP(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H, or try a keyword search, such as Prescaler/Multivibrators
