TC74HC540AF(EL,F) - Toshiba

Description: IC BUFFER INVERT 6V 20SOIC

Download TC74HC540AF(EL,F) Model
Schematic

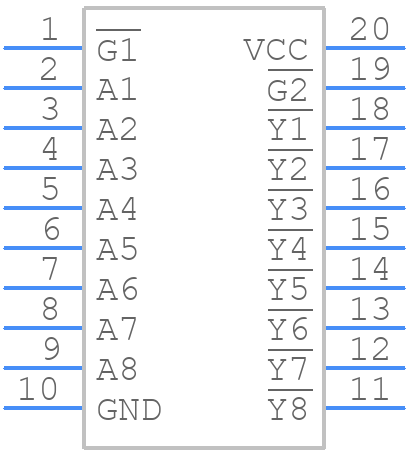

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC540AF(EL,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A
click to zoom
3D Models
TC74HC540AF(EL,F) - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A
click to zoom

TC74HC540AF(EL,F) Details

  • Manufacturer Part Number:

    TC74HC540AF(EL,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC540AF(EL,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74HC540AF is 2V to 6V, with a typical voltage of 5V.
  • It is recommended to power up the VCC pin first and then the input signals, and power down the input signals first and then the VCC pin to prevent latch-up or other unexpected behavior.
  • The maximum frequency of operation for TC74HC540AF is 10MHz, but it can vary depending on the operating voltage and load conditions.
  • To ensure noise immunity and signal integrity, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors near the VCC pin.
  • Yes, TC74HC540AF can be used in a 3.3V system, but the output voltage will be limited to 3.3V, and the input voltage threshold may be affected.
