TC74HC540AF(F) - Toshiba

Description: IC, 74 series logic Toshiba TC74HC540AF(F) Octal Buffer & Line Driver, 3-State, Inverting, 2 → 6 V, 20-Pin SOP

Download TC74HC540AF(F) Model

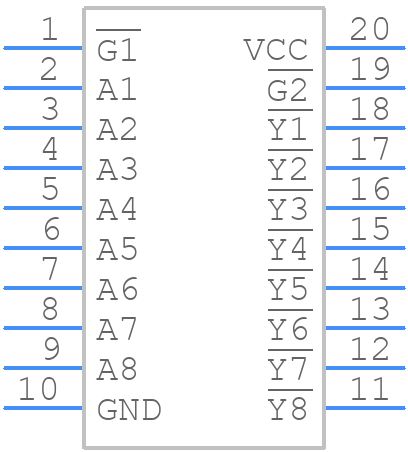

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC540AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A _1
click to zoom
3D Models
TC74HC540AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A _1
click to zoom

TC74HC540AF(F) Details

  • Manufacturer Part Number:

    TC74HC540AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC540AF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74HC540AF(F) is 2V to 6V, with a typical voltage of 5V.
  • It is recommended to power up the VCC pin first, followed by the input signals, and power down the input signals first, followed by the VCC pin to prevent latch-up or damage to the device.
  • The maximum frequency of operation for TC74HC540AF(F) is 10MHz, but it can vary depending on the operating voltage and load conditions.
  • To ensure that the output signals are not distorted or skewed, it is recommended to use a pull-up or pull-down resistor on the output pins, and to keep the output load capacitance as low as possible.
  • Yes, TC74HC540AF(F) can operate in a high-temperature environment up to 125°C, but the device's performance and reliability may be affected. It is recommended to consult the datasheet and application notes for more information.
