TC74HC541AP(F) - Toshiba

Description: Buffers & Line Drivers Tri-State

Download TC74HC541AP(F) Model

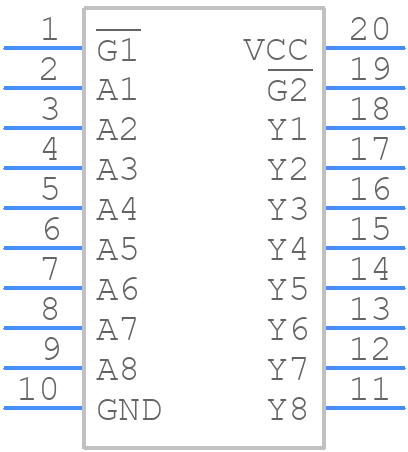

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

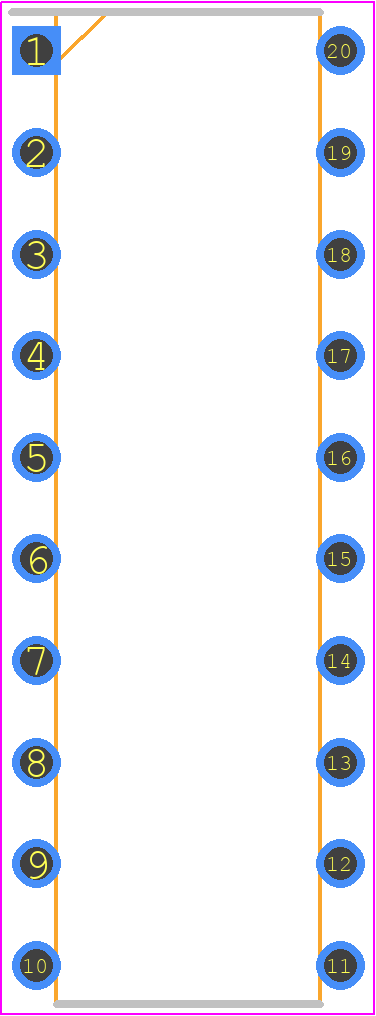

TC74HC541AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20-P-300-2.54A_a
click to zoom
3D Models
TC74HC541AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP20-P-300-2.54A_a
click to zoom

TC74HC541AP(F) Details

  • Manufacturer Part Number:

    TC74HC541AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T20

  • Length:

    24.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    165 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TC74HC541AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74HC541AP(F) is 2V to 6V, with a typical voltage of 5V.
  • When the input pins are not in use, they should be tied to VCC or GND through a resistor to prevent them from floating and causing unwanted oscillations.
  • The maximum frequency of operation for TC74HC541AP(F) is 10MHz at VCC = 5V and 5MHz at VCC = 3V.
  • To prevent damage due to overvoltage, the output pins should not be exposed to voltages higher than VCC + 0.5V or lower than GND - 0.5V.
  • The power dissipation of TC74HC541AP(F) is typically 20mW at VCC = 5V and 10mW at VCC = 3V.
