TC74HC573AF(F) - Toshiba

Description: Toshiba TC74HC573AF(F) 8bit-Bit Latch, Transparent D Type, 3 State, 20-Pin SOP

Download TC74HC573AF(F) Model
Schematic

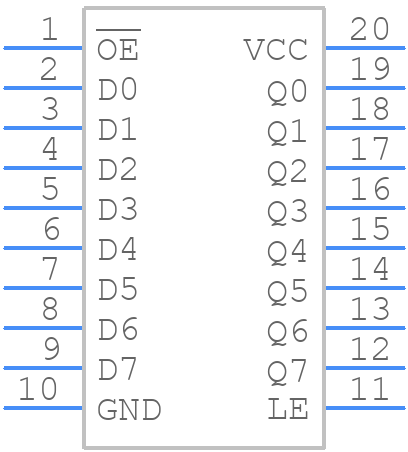

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC573AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A
click to zoom
3D Models
TC74HC573AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A
click to zoom

TC74HC573AF(F) Details

  • Manufacturer Part Number:

    TC74HC573AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.35

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    39 ns

  • Propagation Delay (tpd):

    195 ns

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74HC573AF(F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC74HC573AF(F) is 10 MHz, but it can vary depending on the output load and operating conditions.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up conditions.
  • The recommended output current for the TC74HC573AF(F) is 25 mA per output pin, but it can be limited by the total device power dissipation and the output voltage.
  • To prevent latch-up, ensure that the input signals are within the recommended voltage range, and avoid any voltage spikes or transients on the input pins. Also, use a bypass capacitor between the VCC and GND pins to reduce noise and voltage fluctuations.
  • The thermal resistance of the TC74HC573AF(F) package is typically around 60°C/W for the SOIC package and 40°C/W for the SSOP package, but it can vary depending on the specific package and operating conditions.
