TC74HC7292AP(F) - Toshiba

Description: Toshiba TC74HC7292AP(F), Clock Divider 16-Pin

Download TC74HC7292AP(F) Model

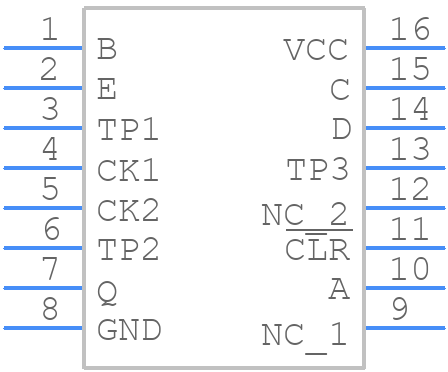

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC7292AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - FFPF10F150STU
click to zoom
3D Models
TC74HC7292AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - FFPF10F150STU
click to zoom

TC74HC7292AP(F) Details

  • Manufacturer Part Number:

    TC74HC7292AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PRESCALER

  • Max Frequency@Nom-Sup:

    26000000 Hz

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Propagation Delay (tpd):

    530 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • fmax-Min:

    26 MHz

TC74HC7292AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC7292AP(F) is 2.0 V to 5.5 V.
  • To ensure proper power-on and power-off, it is recommended to follow a slow voltage ramp-up and ramp-down sequence, with a minimum rise and fall time of 1 ms.
  • The maximum clock frequency supported by the TC74HC7292AP(F) is 10 MHz.
  • To enter power-down mode, the CE (Chip Enable) pin should be set to a logic high level. In this mode, the internal clock is stopped, and the power consumption is reduced.
  • The OE pin is used to enable or disable the output drivers. When OE is set to a logic low level, the output drivers are enabled, and when OE is set to a logic high level, the output drivers are disabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74HC7292AP(F) Overview

Use the download button to access the TC74HC7292AP(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74H, or try a keyword search, such as Prescaler/Multivibrators
