TC74HC74AP(F) - Toshiba

Description: Dual D-Type Flip Flop Preset and Clear

Download TC74HC74AP(F) Model

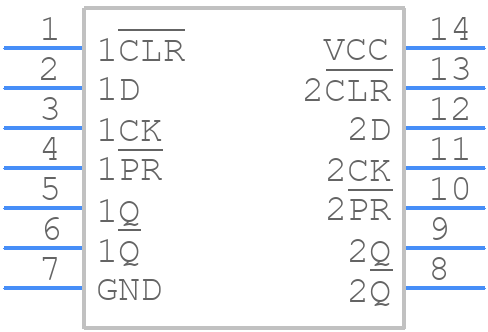

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC74AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC74HC74AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC74HC74AP(F) Details

  • Manufacturer Part Number:

    TC74HC74AP(F)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    25000000 Hz

  • Max I(ol):

    0.004 A

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    190 ns

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    29 MHz

TC74HC74AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74HC74AP(F) is 2.0V to 6.0V.
  • To ensure the flip-flop is properly reset during power-up, connect the preset (PRE) and clear (CLR) inputs to VCC through a 1kΩ to 10kΩ resistor, and ground them through a 1nF to 10nF capacitor.
  • The maximum clock frequency for the TC74HC74AP(F) is 25MHz at VCC = 5.0V and 10MHz at VCC = 3.0V.
  • The asynchronous preset (PRE) and clear (CLR) inputs should be driven by a signal that is synchronized with the clock signal to avoid metastability issues.
  • The propagation delay time for the TC74HC74AP(F) is typically 15ns at VCC = 5.0V and 25ns at VCC = 3.0V.
