TC74HCT4053AF - Toshiba

TC74HCT4053AF Details

• Manufacturer Part Number:

  TC74HCT4053AF

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

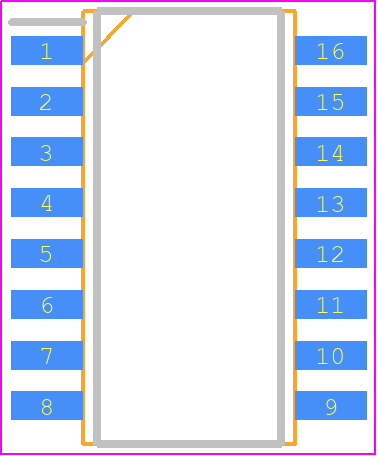

  0.300 INCH, 1.27 MM, PITCH, PLASTIC, SOP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Additional Feature:

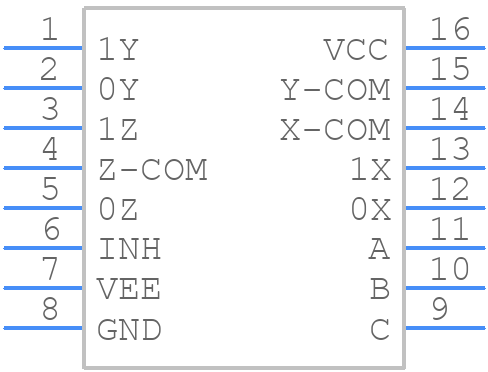

  2-CHANNEL MUX/DEMUX

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDSO-G16

• Length:

  10.55 mm

• Neg Supply Voltage-Max (Vsup):

  -7.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  3

• Number of Terminals:

  16

• On-state Resistance Match-Nom:

  10 Ω

• On-state Resistance-Max (Ron):

  180 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.9 mm

• Signal Current-Max:

  0.025 A

• Supply Voltage-Max (Vsup):

  12 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  59 ns

• Switch-on Time-Max:

  33 ns

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  5.3 mm
