TC74LCX16244(EL,F) - Toshiba

Description: Bus Buffer, 48-Pin TSSOP

Download TC74LCX16244(EL,F) Model

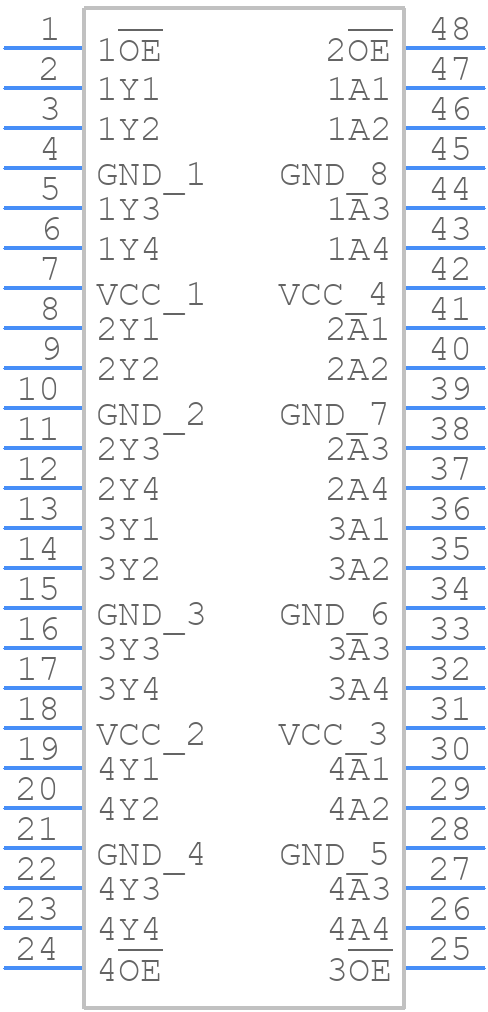

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74LCX16244(EL,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP48-P-0061-0.50A-
click to zoom
3D Models
TC74LCX16244(EL,F) - Toshiba  - 3D model - Small Outline Packages - TSSOP48-P-0061-0.50A-
click to zoom

TC74LCX16244(EL,F) Details

  • Manufacturer Part Number:

    TC74LCX16244(EL,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP,

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    4

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    5.4 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TC74LCX16244(EL,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74LCX16244 is 2.3V to 3.6V, although it can operate from 1.65V to 5.5V.
  • It's recommended to power up the VCC pin first, followed by the input signals, and then power down the input signals before powering down the VCC pin to prevent latch-up or damage.
  • The maximum frequency of operation for the TC74LCX16244 is 100 MHz, although it can operate at higher frequencies with reduced voltage and load capacitance.
  • Use proper PCB design techniques, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to reduce noise and ensure signal integrity.
  • Yes, the TC74LCX16244 can operate in a 5V system, but it's recommended to use a voltage regulator or level shifter to ensure the input signals are within the recommended operating voltage range.
