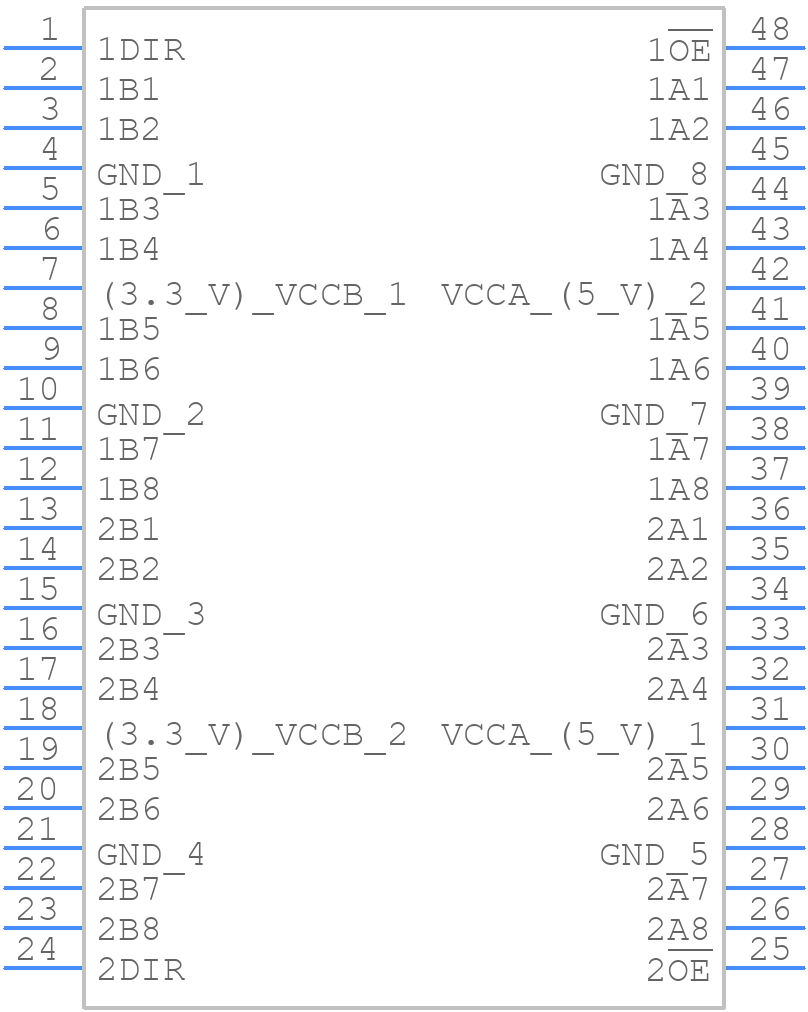

TC74LCX163245(EL,F - Toshiba

TC74LCX163245(EL,F Details

• Manufacturer Part Number:

  TC74LCX163245(EL,F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  6.10 MM, 0.50 MM PITCH, PLASTIC, TSSOP-48

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Additional Feature:

  PORT A OPERATES WITH 4.5 TO 5.5V SUPPLY

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e4

• Length:

  12.5 mm

• Logic IC Type:

  BUS TRANSCEIVER

• Number of Bits:

  8

• Number of Functions:

  2

• Number of Ports:

  2

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Propagation Delay (tpd):

  9 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm
