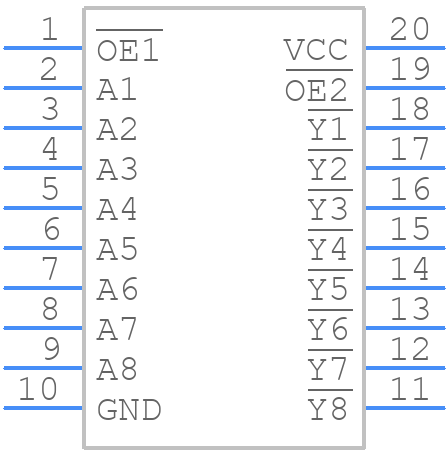

TC74LCX540FK(EL,K) - Toshiba

TC74LCX540FK(EL,K) Details

• Manufacturer Part Number:

  TC74LCX540FK(EL,K)

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VSSOP-20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G20

• Length:

  5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.024 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSSOP

• Package Equivalence Code:

  TSSOP20,.16,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power Supply Current-Max (ICC):

  100 mA

• Prop. Delay@Nom-Sup:

  6.5 ns

• Propagation Delay (tpd):

  25 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  3 mm
