TC74VHC125FK(EL,K) - Toshiba

Description: Toshiba TC74VHC125FK(EL,K), Quad Bus Buffer, 11.5 ns@ 3.3 V 8mA, 2 → 5.5 V, 14-Pin VSSOP

Download TC74VHC125FK(EL,K) Model

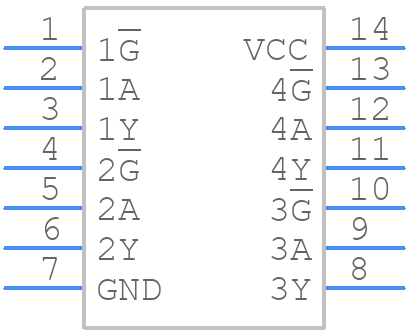

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC125FK(EL,K) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP14
click to zoom
3D Models
TC74VHC125FK(EL,K) - Toshiba  - 3D model - Small Outline Packages - VSSOP14
click to zoom

TC74VHC125FK(EL,K) Details

  • Manufacturer Part Number:

    TC74VHC125FK(EL,K)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    4 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.004 A

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP14,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    8.5 ns

  • Propagation Delay (tpd):

    13 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TC74VHC125FK(EL,K) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74VHC125FK is 2.0V to 5.5V.
  • Yes, the TC74VHC125FK is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The maximum clock frequency that the TC74VHC125FK can handle is 100 MHz.
  • No, the TC74VHC125FK does not have built-in pull-up resistors. External pull-up resistors may be required depending on the application.
  • Yes, the TC74VHC125FK is suitable for high-speed data transmission applications due to its high-speed operation and low propagation delay.
