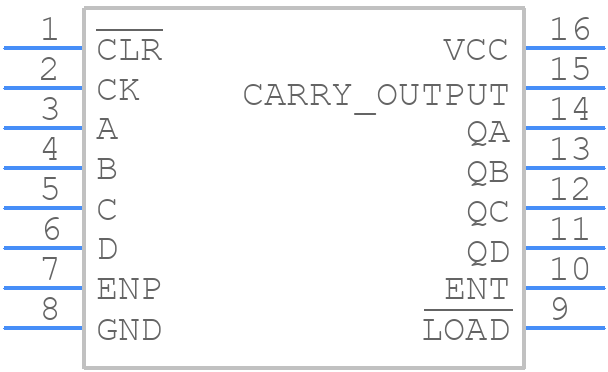

TC74VHC161FK(EL) - Toshiba

TC74VHC161FK(EL) Details

• Manufacturer Part Number:

  TC74VHC161FK(EL)

• Part Life Cycle Code:

  Obsolete

• Package Description:

  VSSOP-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Count Direction:

  UP

• Family:

  AHC/VHC

• JESD-30 Code:

  R-PDSO-G16

• Length:

  4 mm

• Load Capacitance (CL):

  50 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  BINARY COUNTER

• Max Frequency@Nom-Sup:

  85000000 Hz

• Max I(ol):

  0.008 A

• Mode of Operation:

  SYNCHRONOUS

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP16,.16,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  18.5 ns

• Propagation Delay (tpd):

  18.5 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  3 mm

• fmax-Min:

  115 MHz
