TC74VHC4053AFK(E,K - Toshiba

Description: Toshiba TC74VHC4053AFK(E,K, Multiplexer/Demultiplexer Triple 2:1, 3 V, 5 V, 16-Pin VSSOP

Download TC74VHC4053AFK(E,K Model
Schematic
symbols

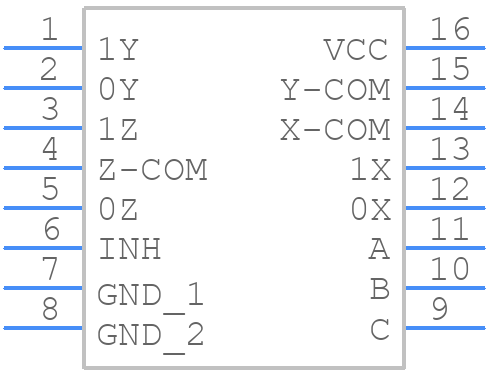

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC4053AFK(E,K - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP16-P-0030-0.50
click to zoom
3D Models
TC74VHC4053AFK(E,K - Toshiba  - 3D model - Small Outline Packages - VSSOP16-P-0030-0.50
click to zoom

TC74VHC4053AFK(E,K Details

  • Manufacturer Part Number:

    TC74VHC4053AFK(E,K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    45 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    108 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    22 ns

  • Switch-on Time-Max:

    22 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

TC74VHC4053AFK(E,K Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC74VHC4053AFK(E) is typically 100 MHz, but it can vary depending on the specific application and signal conditions.
  • To ensure proper signal integrity, it's essential to follow proper PCB layout practices, such as minimizing trace lengths, using impedance-matched transmission lines, and providing adequate power supply decoupling.
  • The TC74VHC4053AFK(E) can be used as both an analog switch and a digital switch, depending on the application. However, it's essential to ensure that the signal levels and frequencies are within the device's specified operating conditions.
  • The maximum power dissipation of the TC74VHC4053AFK(E) is typically 500 mW, but it can vary depending on the specific application, operating conditions, and package type.
  • The TC74VHC4053AFK(E) has built-in ESD protection, but it's still essential to follow proper ESD handling practices during device handling and PCB assembly to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74VHC4053AFK(E,K Overview

Use the download button to access the TC74VHC4053AFK(E,K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74V, or try a keyword search, such as Multiplexers or Switches
