- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC7662BCPA
- Part Number TC7662BCPA
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 8-Pin PDIP
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TC7662BCPA Details
-
Manufacturer Part Number:
TC7662BCPA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
8
-
Manufacturer Package Code:
PDIP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Microchip Technology Inc
TC7662BCPA Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the TC7662BCPA is 12V, but it's recommended to keep it below 10V for reliable operation.
-
To ensure stable output voltage, make sure to use a suitable output capacitor (e.g., 10uF) and keep the input voltage within the recommended range. Also, ensure proper PCB layout and decoupling to minimize noise and oscillations.
-
Yes, the TC7662BCPA can be used as a voltage doubler. However, it's essential to follow the recommended application circuit and ensure that the input voltage is within the specified range to avoid over-voltage stress on the device.
-
The maximum output current that the TC7662BCPA can provide is 20mA. However, it's recommended to keep the output current below 15mA for reliable operation and to avoid overheating.
-
To protect the TC7662BCPA from over-voltage and over-current conditions, use a voltage regulator or a zener diode to limit the input voltage, and add a current-limiting resistor or a fuse to prevent excessive output current.
Trust Checks
Community Provided
System Verified
Community Approved
TC7662BCPA Overview

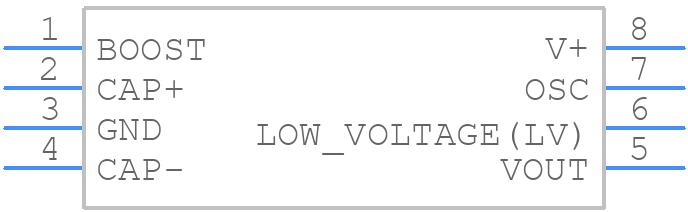

Use the download button to access the TC7662BCPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC766,
or try a keyword search, such as Switching Regulator or Controllers
