TC77-3.3MOA - Microchip

Description: TC77-3.3MOA, 12 + Signbit Temperature Sensor ±3°C Serial-SPI 2.7 to 5.5V 8-Pin SOIC

Download TC77-3.3MOA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

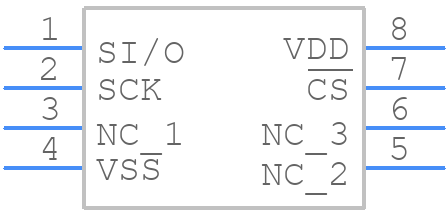

TC77-3.3MOA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC77-3.3MOA - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - soic-8
click to zoom
3D Models
TC77-3.3MOA - Microchip - 3D model - Small Outline Packages - soic-8
click to zoom

TC77-3.3MOA Details

  • Manufacturer Part Number:

    TC77-3.3MOA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.91 mm

  • Body Height:

    1.42 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Voltage-Max:

    2.4 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    TS 16949

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER
