Toshiba recommends following the PCB layout guidelines provided in the application note for the TC7MBL series, which includes keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
The TC7MBL3125CFT(EL) has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat dissipation through a heat sink or thermal pad, and to follow the recommended thermal management guidelines in the datasheet.
Although the datasheet specifies a minimum input voltage of 2.7V, Toshiba recommends operating the TC7MBL3125CFT(EL) within the range of 3.0V to 5.5V for optimal performance and to ensure reliable operation.
Yes, the TC7MBL3125CFT(EL) is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and testing guidelines, and to consult with Toshiba's application engineers to ensure compliance with specific industry standards and requirements.
Toshiba provides a troubleshooting guide for the TC7MBL series, which includes steps for identifying and resolving common issues such as output voltage deviations, oscillations, and overheating. Additionally, engineers can consult with Toshiba's technical support team for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC7MBL3125CFT(EL) Overview

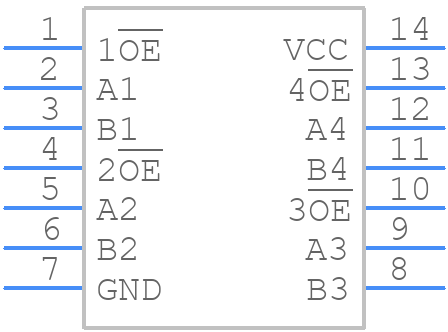

Use the download button to access the TC7MBL3125CFT(EL) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC7MB,
or try a keyword search, such as Bus Driver/Transceivers
