TC7MPB9326FK - Toshiba

Description: Dual SPDT Dual Supply Bus Switch, SPDT, US14

Download TC7MPB9326FK Model

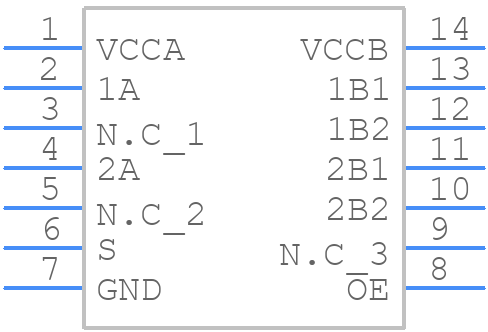

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7MPB9326FK - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP14-P-0030-0.5
click to zoom
3D Models
TC7MPB9326FK - Toshiba  - 3D model - Small Outline Packages - VSSOP14-P-0030-0.5
click to zoom

TC7MPB9326FK Details

  • Manufacturer Part Number:

    TC7MPB9326FK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    VSSOP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.55

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    P

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    4 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    BUS EXCHANGER

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Ports:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    25 mA

  • Prop. Delay@Nom-Sup:

    2.2 ns

  • Propagation Delay (tpd):

    2.2 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC7MPB9326FK Overview

Use the download button to access the TC7MPB9326FK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC7MP, or try a keyword search, such as Bus Driver/Transceivers
