TC7QPB9306FT - Toshiba

Description: 4-Bit Dual Supply Bus Switch, SPST, TSSOP14

Download TC7QPB9306FT Model

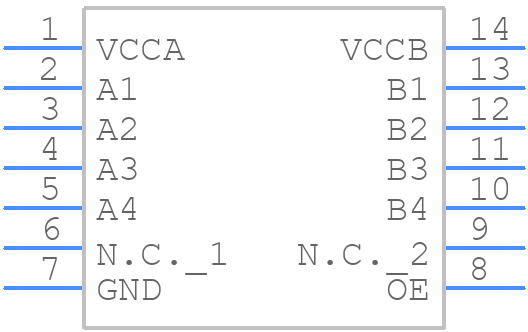

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7QPB9306FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14
click to zoom
3D Models
TC7QPB9306FT - Toshiba  - 3D model - Small Outline Packages - TSSOP14
click to zoom

TC7QPB9306FT Details

  • Manufacturer Part Number:

    TC7QPB9306FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.45

  • Additional Feature:

    ALSO OPERATES WITH 2.3-5.5 V SUPPLY

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    9306

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    25 mA

  • Prop. Delay@Nom-Sup:

    0.65 ns

  • Propagation Delay (tpd):

    0.45 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm
