TC7USB42MU,LF(S2E - Toshiba

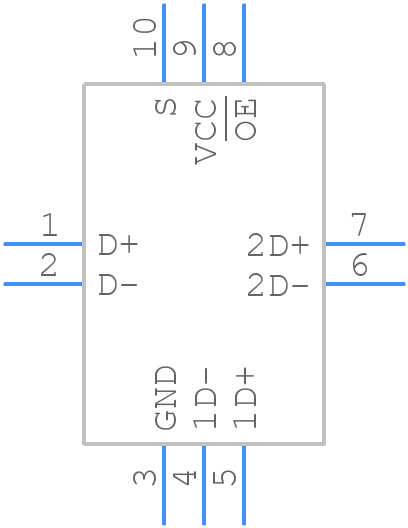

TC7USB42MU,LF(S2E Details

• Manufacturer Part Number:

  TC7USB42MU,LF(S2E

• Part Life Cycle Code:

  Active

• Package Description:

  UQFN-10

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  7

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PQCC-N10

• Length:

  1.8 mm

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  2

• Number of Terminals:

  10

• Off-state Isolation-Nom:

  24 dB

• On-state Resistance Match-Nom:

  0.35 Ω

• On-state Resistance-Max (Ron):

  14 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC10,.05X.06,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Seated Height-Max:

  0.55 mm

• Signal Current-Max:

  0.05 A

• Supply Voltage-Max (Vsup):

  4.3 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  24 ns

• Switch-on Time-Max:

  20 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  1.4 mm
