TC7USB42MU footprint, schematic symbol and 3D model by Toshiba

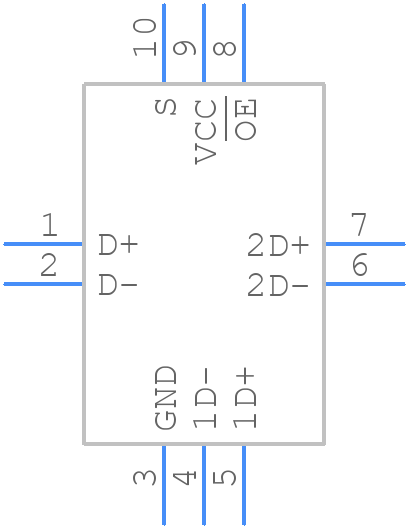

Symbol

click to zoom

PCB Footprints

TC7USB42MU - Toshiba PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UQFN10

click to zoom

3D Models

TC7USB42MU - Toshiba - 3D model - Quad Flat No-Lead - UQFN10

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC7USB42MU
Part Number TC7USB42MU
Manufacturer Toshiba
Pin Count 10
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - UQFN10
Released Date Jul 6, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TC7USB42MU Details

Manufacturer Part Number:
TC7USB42MU
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
UQFN-10
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
7
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-PQCC-N10
Length:
1.8 mm
Normal Position:
NO
Number of Channels:
1
Number of Functions:
2
Number of Terminals:
10
Off-state Isolation-Nom:
24 dB
On-state Resistance Match-Nom:
0.35 Ω
On-state Resistance-Max (Ron):
14 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
COMMON OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
VQCCN
Package Equivalence Code:
LCC10,.05X.06,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
0.55 mm
Signal Current-Max:
0.05 A
Supply Voltage-Max (Vsup):
4.3 V
Supply Voltage-Min (Vsup):
2.3 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Switch-off Time-Max:
24 ns
Switch-on Time-Max:
20 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
1.4 mm
