TC7WZ125FK,LJ(CT - Toshiba

Description: Buffers & Line Drivers LMOS Dual Bus Buffer

Download TC7WZ125FK,LJ(CT Model

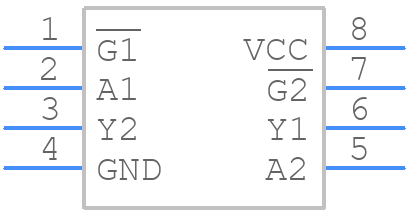

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7WZ125FK,LJ(CT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - US8__SOT-765
click to zoom

TC7WZ125FK,LJ(CT Details

  • Manufacturer Part Number:

    TC7WZ125FK,LJ(CT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-765, 8 PIN

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.85

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    13 ns

  • Propagation Delay (tpd):

    13 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

TC7WZ125FK,LJ(CT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC7WZ125FK is 2.3V to 5.5V.
  • To minimize power consumption, ensure that the input voltage is below 0.5V and the output is in a high-impedance state.
  • The maximum allowable power dissipation for the TC7WZ125FK is 500mW.
  • Use ESD protection devices, such as TVS diodes, and follow proper handling and storage procedures to prevent ESD damage.
  • The maximum operating frequency for the TC7WZ125FK is 125MHz.
